Application Areas

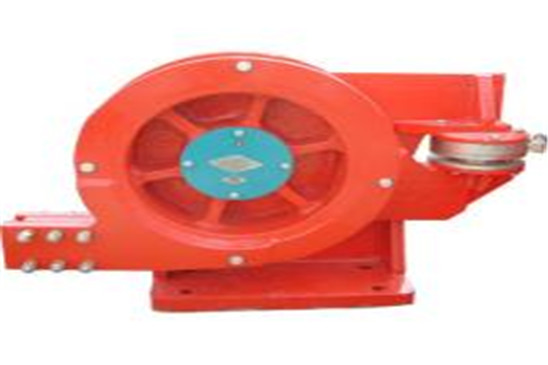

    JZG20A Deadline Anchor is a mechanism that converts deadline pull of a drilling rig into liquid pressure. It is one of the important components of weight indicating system, which can be used with JZG18.1.5 sensor made by the company to work as the primary instrument, and then makes a weight indicating system together with weight indicator and recorder.

Technical Specifications        1. Maximum deadline pull: 200kN
        2. Sensator: JZG18.1.5
        3. Error of output pressure f deadline anchor: ±1%
        4. Size: 1060mm×762mm×365mm
        5. Weight: 550kg
        6. Slickline diameter: Φ29mm,Φ26mm
