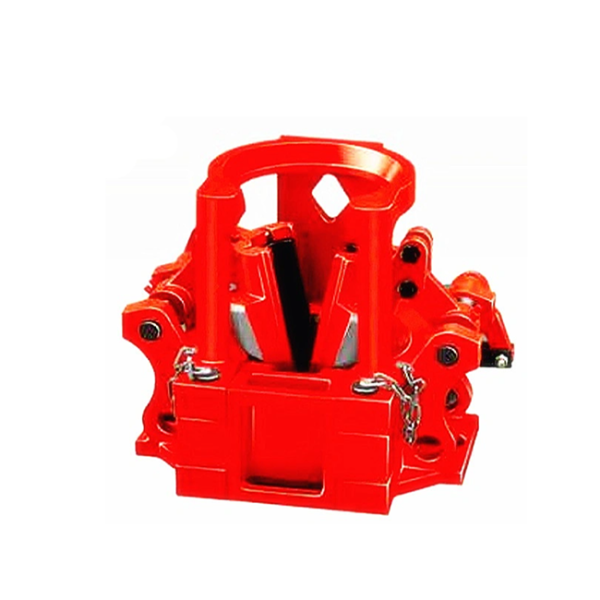

2-3/8～7-5/8 Model E Pneumatic Tubing Spider
The Pneumatic Tubing Spider is used for oil well drilling and workover servicing operations. The spider allows the cable pass through during operation. Conforms to API standard. INCLUDE: Type C, CHD, E, and F Designed for heavy duty use. It has a size range of 1.315″ through 5 1/2″ by changing out slip bodies and inserts. It is made of high alloy heat treated steel for strength and resistance to wear.
Features:
**The Pneumatic Spiders are utilized to handle drill pipe and tubing in oil well repairing
**Rated Load Capacity: 80Tons, 120 Tons, 125 Tons,175 Tons
**High Performance, Competitive price
| Model | OD of the tubulars | specification of the slip bodies | Rated Capacity |
|---|---|---|---|
| C | 1.315-31/2 | 31/2 | 80tons |
| 31/2-41/2 | 41/2 | ||
| 43/4 | 43/4(Integral) | ||
| 5 | 5(Integral) | ||
| 51/2 | 51/2(Integral) | ||
| CHD | 1.315-31/2 | 31/2 | 120tons |
| 31/2-41/2 | 41/2 | ||
| 43/4 | 43/4(Integral) | ||
| 5 | 5(Integral) | ||
| 51/2 | 51/2(Integral) | ||
| HD | 1.315-31/2 | 31/2 | 125tons |
| 31/2-41/2 | 41/2 | ||
| 43/4 | 43/4(Integral) | ||
| 5 | 5(Integral) | ||
| 51/2 | 51/2(Integral) | ||
| E | 23/8-31/2 | 31/2 | 175tons |
| 4-51/2 | 51/2 | ||
| 51/2-7 | 7 | ||
| 75/8 | 75/8 (Integral) |
Our company has been in the oil & gas drilling equipment industry for over more years, We are here to serve all your drilling equipment needs.
