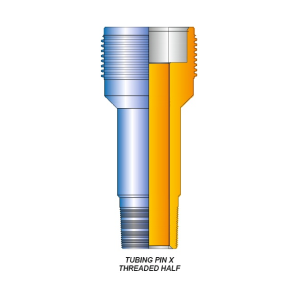

API Threaded Adapters
API Threaded Adapters have an API pin thread down and a quick box connection up. These adapters are used for lower working pressures. Any combination of end connections are available on request.
| API THREADED ADAPTERS | ||||
|---|---|---|---|---|
| Service | 1.D. (inch) | W.P. (PSI) | Bottom Conn. | Part No. |
| STD | 2.44 | 5,000 | 2-7/8”EU 8 rd | 134-035031 |
| H2S | 2.44 | 5,000 | 2-7/8* EU 8 rd | 134-035030 |
| STD | 2.50 | 5,000 | 3-1/2”EU 8 rd | 134-045041 |
| H2S | 2.50 | 5,000 | 3-1/2″ EU 8 rd | 134-045040 |
| STD | 2.99 | 5,000 | 3-1/2″ EU 8 rd | 134-055041 |
| H2S | 2.99 | 5,000 | 3-1/2″ EU 8 rd | 134-055040 |
| H2S | 3.95 | 5,000 | 4-1/2″ EU 8 rd | 134-075060 |
| STD | 3.59 | 5,000 | 4-1/2″ EU 8 rd | 134-075061 |
| H2S | 4.00 | 5,000 | 4-1/2″-8 rd long casing | 134-085070 |
| STD | 4.00 | 5,000 | 4-1/2″-8 rd long casing | 134-085071 |
| H2S | 4.00 | 5,000 | 5-1/2″-8 rd long casing | 134-085080 |
| STD | 4.89 | 5,000 | 5-1/2″-8 rd long casing | 134-105081 |
| STD | 5.00 | 3,000 | 7″-8 rd long casing | 134-113091 |
| STD | 5.00 | 5,000 | 7-5/8″-8 rd long casing | 134-115101 |
| H2S | 5.00 | 3,000 | 7″-8 rd long casing | 134-113090 |
| H2S | 5.00 | 5,000 | 7-5/8″-8 rd long casing | 134-115100 |
| STD | 5.00 | 5,000 | 9-5/8″-8 rd long casing | 134-115111 |
| H2S | 5.00 | 5,000 | 9-5/8″-8 rd long casing | 134-115110 |
| STD | 6.38 | 5,000 | 9-5/8″-8 rd long casing | 134-135111 |
| H2S | 6.38 | 5,000 | 9-5/8″-8 rd long casing | 134-135110 |
| STD | 6.09 | 3,000 | 7″-8 rd long casing | 134-123091 |
| H2S | 6.09 | 3.000 | 7″-8 rd long casing | 134-123090 |
