Complete diverter controls with sequencing options and indicators.
Alarm systems to alert operator of potential issues and if drilling operations should stop to prevent a possible uncontrolled well situation.
Components have been field tested for decades to ensure dependability, maximum life and minimal downtime service.
It work with most PLC manufacturers’ control equipment to be compatible with your rig electronics.
It can be designed and manufactured to any specification including ATEX, all European Directives, GOST, NORSOK, DNV, ABS and all major oil companies specifications.

Category: Tags: ,

Description

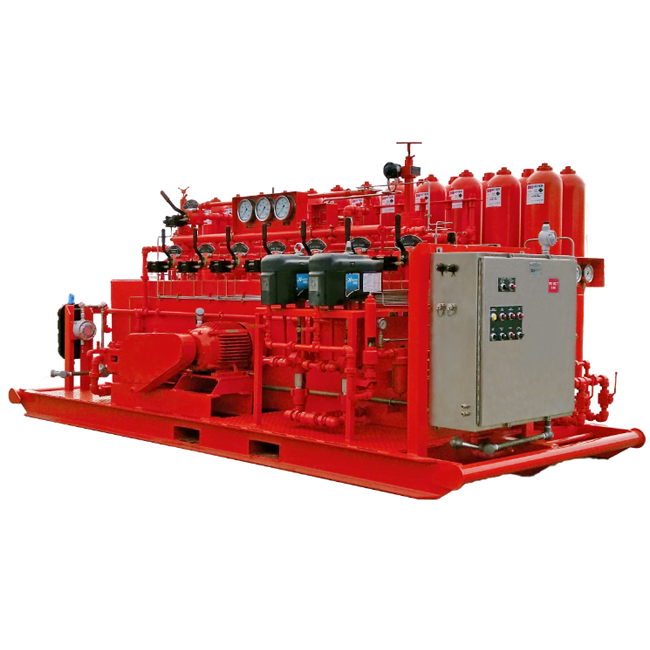

BOP Drilling Accumulator Units

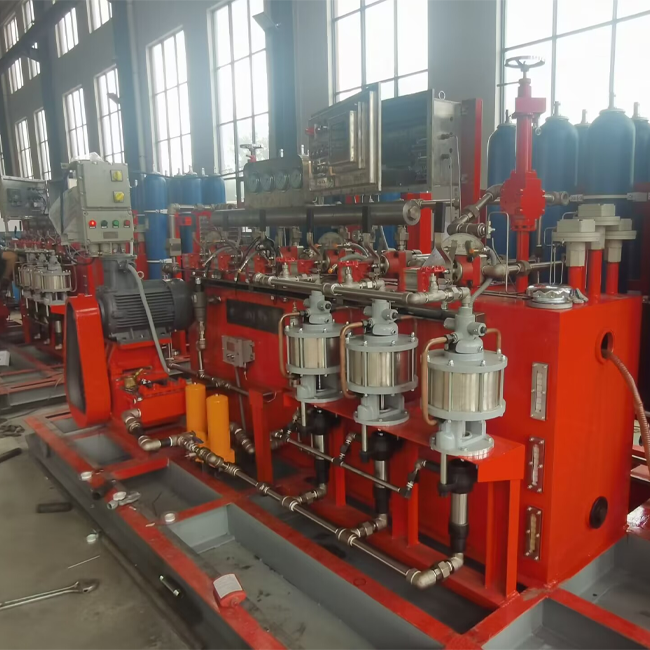

Blowout preventer accumulator unit is a very important equipment which controls BOP stacks and gate valves controlled by hydraulic pressure especially in drilling and workover operations. It is necessary to accurately operate and maintain the hydraulic control system. It consists of remote control system, driller’s panel, air cable (except electrical type), pipe rack (electrical warming system available for cold area), high pressure manifold, protection room, etc.

The function of the blowout preventer accumulator unit for surface mounted Bop stacks is preparing and prestoring enough hydraulic oil and controlling its flow direction, in order to open or close Bop quickly. As the hydraulic oil used, the pressure drops down, when the pressure lowers to a certain value, the blowout preventer accumulator unit will renew the hydraulic oil automatically to keep the pressure in a certain high value.

DEENPU Accumulator unit is designed, manufactured and inspected in accordance with API16D, and it can be divided into two types: Electrical type FKDQ series and Pneumatic type FKQ series.

Model Number of controlled objects Accumulator unit Explosion-proof
motor Power(Kw)		 Pump system displacement Rated operating pressure of the system (Mpa) Maximum operating pressure of the system (Mpa)
Total volume (L) Available liquid volume (L) Installation mode Triplex pump (mL/r) Pneumatic pump
(mL/stroke)
FKDQ1920-13 13 80×24 960 Side / Rear 18.5×3 80×3 120×5 21 31.5
FKDQ1600-14 14 80×20 800 Side / Rear 18.5×2 80×2 120×4 21 31.5
FKDQ1600-12 12 80×20 800 Side / Rear 18.5×2 80×2 120×4 21 31.5
FKDQ1600-10 10 80×20 800 Side / Rear 18.5×2 80×2 120×4 21 31.5
FKDQ1440-14 14 60×24 720 Side / Rear 18.5×2 80×2 120×4 21 31.5
FKDQ1280-10 10 80×16 640 Side / Rear 18.5×2 80×2 120×3 21 31.5
FKDQ1280-9 9 80×16 640 Side / Rear 18.5×2 80×2 120×3 21 31.5
FKDQ1280-8 8 80×16 640 Side / Rear 18.5×2 80×2 120×2 21 31.5
FKDQ1280-7 7 80×16 640 Side / Rear 18.5×2 80×2 120×2 21 31.5
FKDQ1200-17 17 60×20 600 Side / Rear 18.5×2 80×2 120×3 21 31.5
FKDQ1200-9 9 60×20 600 Side / Rear 18.5×2 80×2 120×3 21 31.5
FKDQ1200-8 8 60×20 600 Side / Rear 18.5×2 80×2 120×2 21 31.5
FKDQ960-8 8 60×16 480 Side / Rear 18.5×2 80×2 120×2 21 31.5
FKDQ960-7 7 60×16 480 Side / Rear 18.5×2 80×2 120×2 21 31.5
FKDQ800-8 8 40×20 400 Side / Rear 18.5 80 120 21 31.5
FKDQ 800-7 7 40×20 400 Side / Rear 18.5 80 120 21 31.5
FKDQ 800-6 6 40×20 400 Side / Rear 18.5 80 120 21 31.5
FKDQ720-7 7 60×12 360 Side / Rear 18.5 80 120 21 31.5
FKDQ 720-6 6 60×12 360 Side / Rear 18.5 80 120 21 31.5
FKDQ 640-6 6 40×16 320 Side / Rear 18.5 80 120 21 31.5
FKDQ 640-5 5 40×16 320 Side / Rear 18.5 80 120 21 31.5
FKDQ 480-5 5 40×12 240 Side / Rear 18.5 80 120 21 31.5
FKDQ 480-4 4 40×12 240 Side / Rear 18.5 80 120 21 31.5
FKDQ320-5 5 40×8 160 Side / Rear 15 60 120 21 31.5
FKDQ320-4 4 40×8 160 Side / Rear 15 60 120 21 31.5
FKDQ320-3 3 40×8 160 Side / Rear 15 60 120 21 31.5
FKDQ240-3 3 40×6 120 Side / Rear 15 60 120 21 31.5
FKDQ200-4 4 25×8 100 Side / Rear 15 60 120 21 31.5
FKDQ160-3 3 40×4 80 Side / Rear 15 60 120 21 31.5
FKDQ150-2 2 50×3 75 Side / Rear 15 60 120 21 31.5
FKDQ125-3 3 25×5 62.5 Side / Rear 7.5/11 28 × 21 21
FKDQ80-3 3 40×2 40 Side / Rear 7.5 28 × 21 21
FKDQ80-2 2 40×2 40 Side / Rear 7.5 28 × 21 21
FKDQ75-2 2 25×3 62.5 Side / Rear 7.5 28 × 21 21
FKDQ63-2 2 63×1 31.5 Side / Rear 7.5 28 × 21 21
FKDQ50-2 2 25×2 25 Side / Rear 7.5 28 × 21 21
FKDQ40-2 2 40×1 20 Side / Rear 7.5 28 × 21 21
FKDQ25-2 2 25×2 12.5 Side / Rear 7.5 28 × 21 21
FKDQ25-1 1 25×2 12.5 Side / Rear 7.5 28 × 21 21
