Description

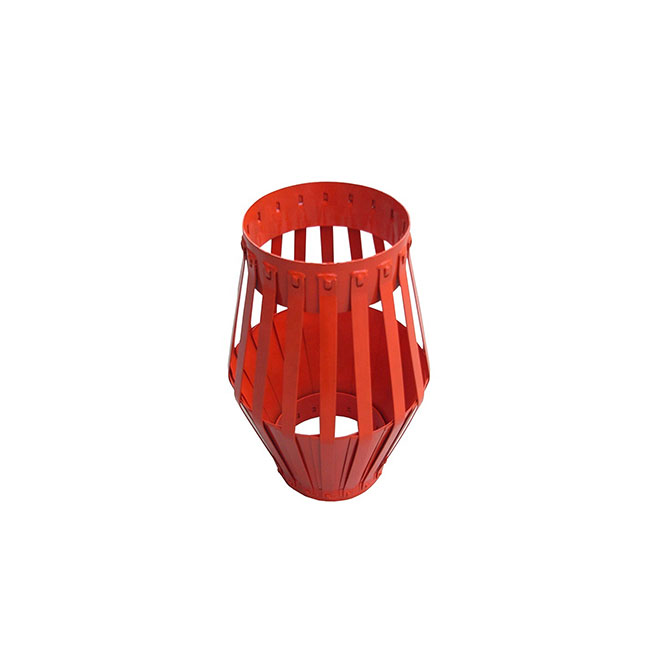

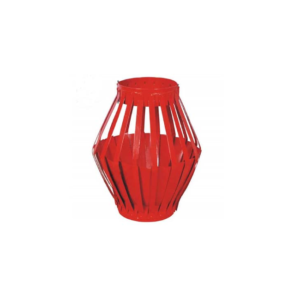

Cement Basket
Cementing Baskets may be run on casing, tubing or liners, and are designed to seal off zones below the basket from contamination by cement slurry. They are also used in stage cementing or in cementing the annulus from surface. Slip on steel type cement basket and canvas basket are available. Available in the size range 4 ½ ” to 30 “.
When ordering, please specify:
Casing size
Hole size
Slip on steel type or canvas basket
Hole size
Slip on steel type or canvas basket
| Casing Size | No. of Bows | Total Length | Basket O.D. | Min. Hole Size | |
| In | in | mm | in | ||
| 4 1/2 | 10 | 24 1/2 | 12 1/2 | 317.5 | 6 |
| 5 | 10 | 24 1/2 | 13 | 342.9 | 6 |
| 5 1/2 | 12 | 24 1/2 | 13 1/2 | 342.9 | 7 1/4 |
| 6 5/8 | 12 | 24 1/2 | 14 5/8 | 371.5 | 8 3/8 |
| 7 | 14 | 24 1/2 | 15 | 381 | 8 3/8 |
| 7 5/8 | 14 | 24 1/2 | 15 5/8 | 396.9 | 9 1/2 |
| 8 5/8 | 16 | 24 1/2 | 16 5/8 | 422.3 | 10 5/8 |
| 9 5/8 | 18 | 24 1/2 | 17 5/8 | 447.7 | 11 5/8 |
| 10 3/4 | 18 | 24 1/2 | 18 3/4 | 476.3 | 12 3/4 |
| 11 3/4 | 20 | 24 1/2 | 19 3/4 | 501.7 | 13 3/4 |
| 11 3/8 | 24 | 24 1/2 | 21 3/8 | 542.9 | 15 1/2 |
| 16 | 28 | 24 1/2 | 24 | 609.6 | 18 |
| 18 5/8 | 34 | 24 1/2 | 26 5/8 | 676.3 | 20 5/8 |
| 20 | 34 | 24 1/2 | 28 | 711.2 | 22 |
