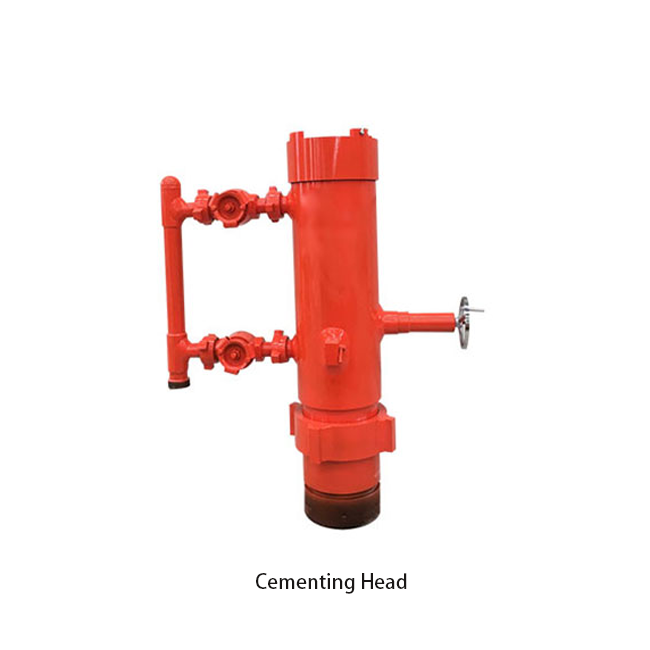

Cementing Head

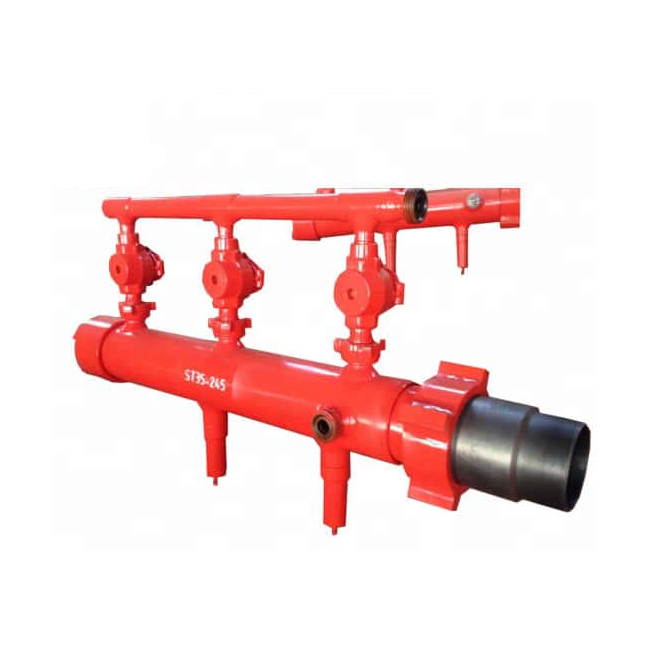

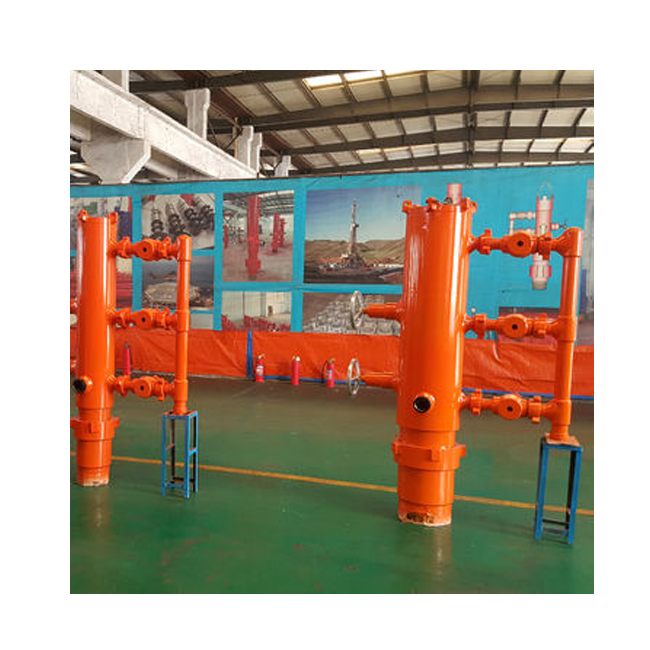

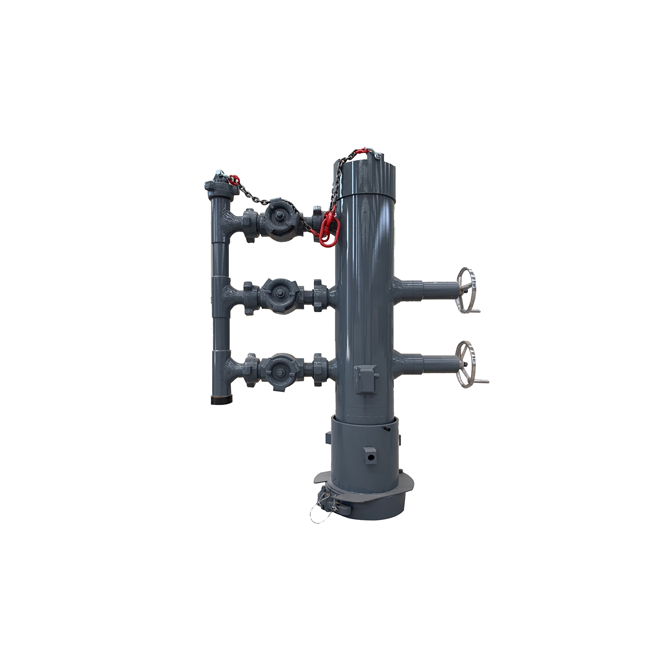

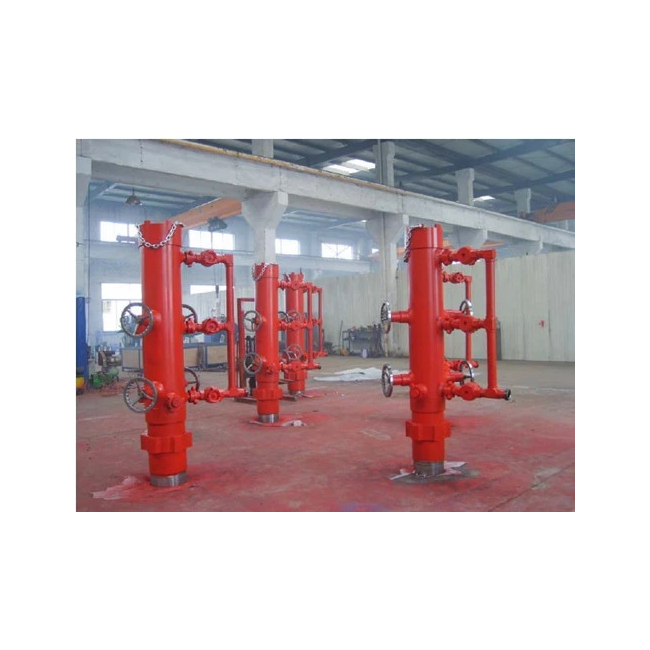

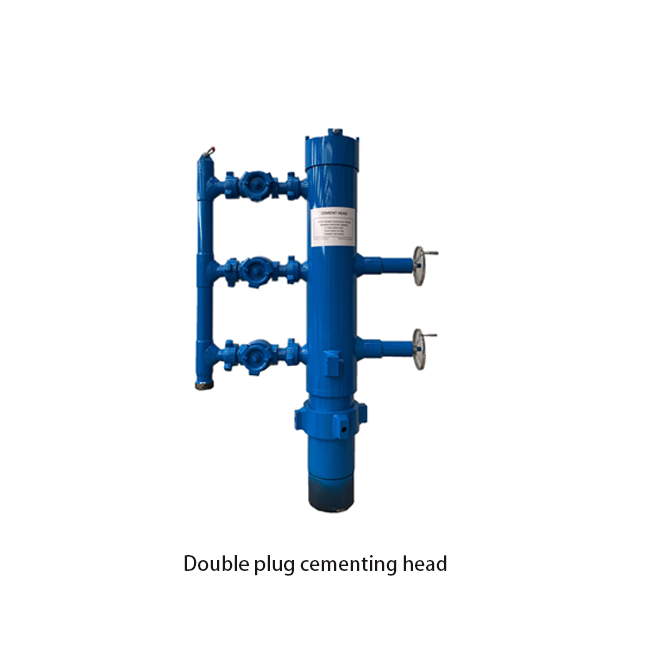

Double plug cement head is a special tool for grouting cement and releasing rubber plugs. Two rubber plugs can be installed at the same time, which can be used for both conventional double plug cementing and continuous two-stage cementing.
When ordering, please specify:
Casing size
Hole size
Slip on steel type or canvas basket
Specification
Technical parameters of double plug cementing head
| Specifications, (in) | Φ139.7
(5½”) |
Φ177.8
(7″) |
Φ193 .7
(7⅝”) |
Φ244.5
(9⅝”) |
Φ273
(10¾”) |
Φ339.7
(13⅜”) |
| Overall-Length, mm | 1950 | 2020 | 2020 | 2360 | 2360 | 2440 |
| Manifold | 2″ 1502 Union | |||||
| I.D. of Plug Container, mm | Φ125 | Φ160 | Φ175 | Φ225 | Φ250 | Φ320 |
| Length of Plug Container, mm | 400 | 450 | 450 | 550 | 550 | 600 |
| Working Pressure, MPa | 35,50 | 35,50 | 35,50 | 35,50 | 35 | 21 |
Technical parameters of single plug cementing head
| Specifications, (in) | Φ139.7
(5½”) |
Φ168
(6⅝”) |
Φ177.8
(7″) |
Φ194
(7⅝”) |
Φ244.5
(9⅝”) |
Φ273
(10¾”) |
Φ339.7
(13⅜”) |
| Overall Length, mm | 1460 | 1500 | 1500 | 1550 | 1750 | 1750 | 1780 |
| Manifold | 2″Union | ||||||
| I.D. of Plug Container, mm | Φ125 | Φ150 | Φ160 | Φ175 | Φ225 | Φ250 | Φ320 |
| Length of Plug Container, mm | 400 | 450 | 450 | 450 | 550 | 550 | 600 |
| Working Pressure, MPa | 35,50 | 35,50 | 35,50 | 35,50 | 35,50 | 35 | 35 |
