Elevator Spider

Oilfield casing elevators and spider are used to grip tubulars and API-sized pipes vertically lifting and lowering the string into or out of the wellbore as part of the casing running process.

Description

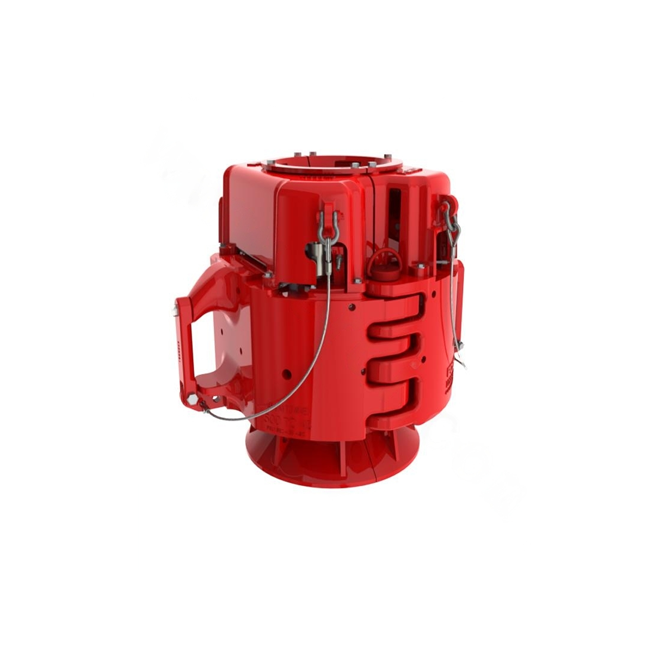

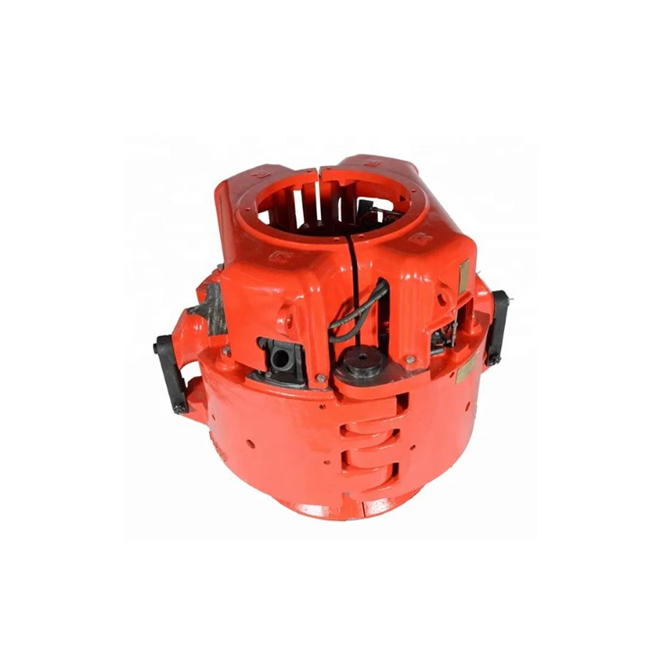

Elevator Spider



Slip Type Elevator Spiders are mechanized tools with air operating. They can handle casings up to 24-1/2″. They are easy to operate and dependable enough. Also, they can reduce workload. They are designed and manufactured according to 8A/8C  spec for drilling and production hoisting equipment.

Model Applicable diameter of tubular(in) Rated capacity Work pressure Max pressure
(tons) (MPa) (Mpa)
SE150 2-3/8″ ~ 5-1/2″ 150 0.6-0.8 1
SE350 (14) 4″ ~ 14″ 350 0.6-0.8 1
SE500 (20) 16″ ~ 20″ 350 0.6-0.8 1
SE500 (14) 4″ ~ 14″ 500 0.6-0.8 1
SE500 (24-1/2) 16″ ~ 24-1/2″ 500 0.6-0.8 1
SEB350 4-1/2“ ~ 13-3/8″ 350 0.6-0.8 1
