Description
FLUID END MODULE & ACCESSORIES

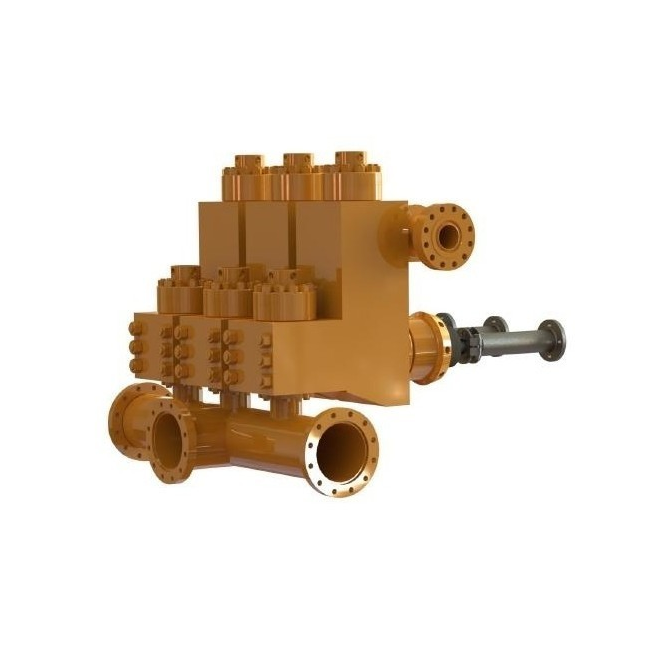

Mud Pump Fluid End Module is an important component of the hydraulic pump end of the mud pump.
Mud Pump Fluid End Module is forged by high-quality alloy steel 35CrMo or 40CrMnMo. It has no defects such as interlayer, crack, impurity, looseness and over-burning. Welding is not allowed. In addition, The Mud Pump Fluid End Module is in full compliance with API7K standard and is inspected according to the third-grade forging and internal hardening treatment, high durability. Above process is strictly checked and strict non-destructive testing.
Pressure: 5000 ~ 10000 psi
Material: 35CrMoA or 40CrMoMn
Brand: NATIONAL, GD, EMSCO, OILWELL, IDECO, DRILLMEC, WEATHERFORD, BOMCO, TSC, EWCO, AMERICAN BLOCK, EWECO, HONGHUA, LS NOV, WIRTH, RONGSHENG
NATIONAL 12-P-160SW | |||
---|---|---|---|
FLUID END MODULE & ACCESSORIES | |||
ITEM | PART NUMBER | DESCRIPTION | QTY/PUMP |
FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEMS 1-29) | 3 | ||
1 | PREM-FEM12PDISSWNS | MODULE, DISCHARGE STUDDED(INCLUDES ITEMS 1,3-8,10) | 3 |
2 | PREM-FEM12PSUCSWNS | MODULE, SUCTION STUDDED (INCLUDES ITEMS 2, 7,8) | 3 |
3 | PREM-12PDSUCSSW | STUD, DISCHARGE TO SUCTION MODULE | 18 |
4 | PREM-6300281 | NUT, DISCHARGE TO SUCTION STUD | 18 |
5 | PREM-2408029 | STUD, POWER END | 30 |
6 | PREM-6300220 | NUT, POWER END STUD | 30 |
7 | PREM-12PTRSSW | STUD, THREADED RING | 72 |
8 | PREM-6300240 | NUT, THREADED RING STUD | 72 |
9 | PREM-6511416 | PIN, DOWELL | 6 |
10 | PREM-PEP75 | CAPSCREW, LINER RETAINER FLANGE | 18 |
11 | PREM-PP6021260SW | PLATE, LINER WEAR | 3 |
12 | PREM-1290344 | GASKET, WEAR PLATE AND MODULE – RUBBER | 6 |
13 | PREM-12PLASW | FLANGE, LINER RETAINER (LINER BUSHING) | 3 |
14 | PREM-12PLANSW | NUT, LINER RETAINER | 3 |
15 | PREM-12PVCASSYSWNS | ASSY, VALVE COVER PLUG (INCLUDES ITEMS 16,20,21,22) | 6 |
16 | PREM-12PVCSWNS | PLUG, VALVE COVER | 6 |
17 | PREM-12PFLGSW | RING, THREADED (THREADED FLANGE) | 6 |
18 | PREM-12PCAPSW | CAP, THREADED (SCREW GLAND) | 6 |
19 | PREM-07207119 | SEAL, VALVE COVER PLUG – RUBBER | 6 |
20 | PREM-12PVGASWNS | ASSEMBLY, VALVE GUIDE (INCLUDES ITEMS 20 & 21) | 6 |
21 | PREM-PZ789VG1 | BUSHING, VALVE GUIDE | 6 |
22 | PREM-50C125KFCYB | SCREW, VALVE GUIDE | 12 |
23 | PREM-1540851 | GASKET,SUCTION MANIFOLD | 3 |
24 | PREM-NAT12PDSMA | ADAPTER, DISCHARGE | 2 |
25 | PREM-2410031437 | SEAL, DISCHARGE ADAPTER | 4 |
26 | PREM-NAT12PDSMC | CONNECTOR, DISCHARGE | 2 |
27 | PREM-2410031433 | SEAL, DISCHARGE CONNECTOR TO DISCHARGE ADAPTER | 2 |
28 | PREM-700030711 | CAPSCREW, DISCHARGE CONNECTOR (W /LOCKWASHER) | 16 |
29 | PREM-1292175 | RING, BACKUP (DISCHARGE CONNECTOR) |
