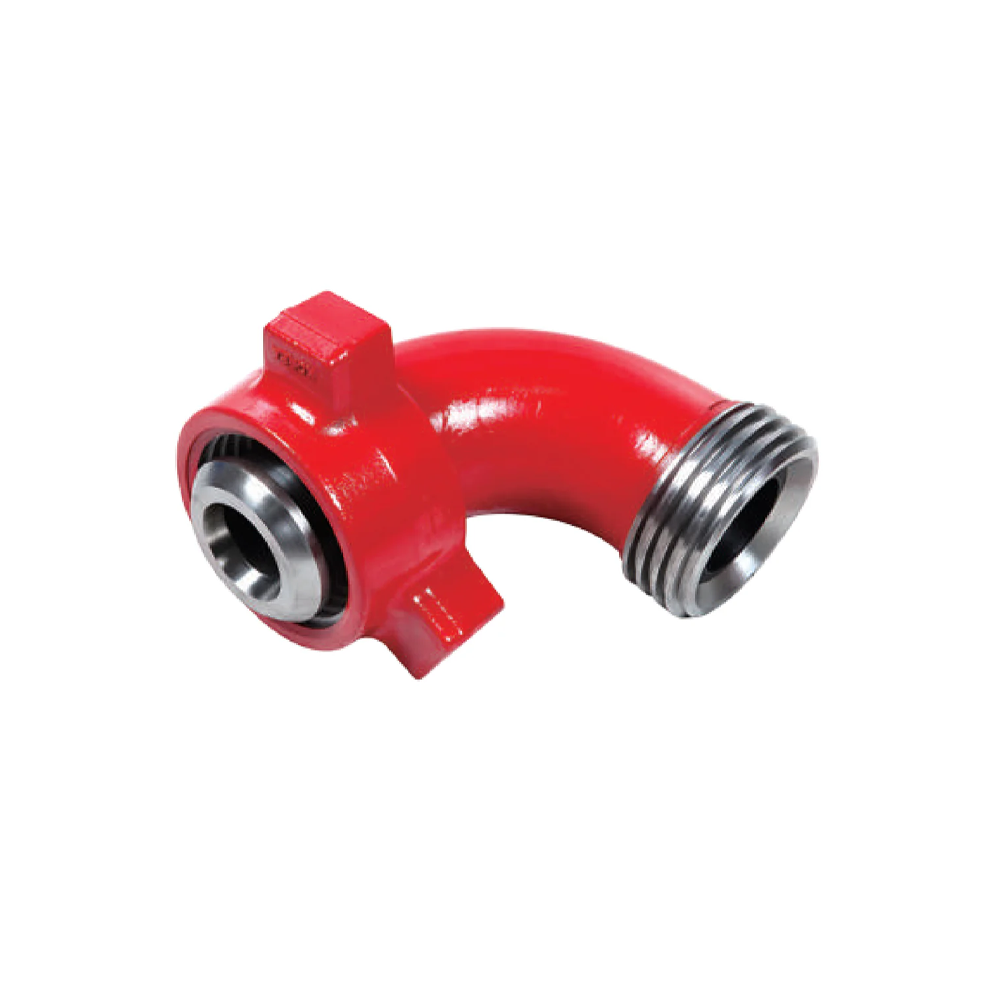

Integral 90 Degree Long Sweep Elbow, FIG 1502

  1. Home
  2. Flowline Products
  3. integral-fittings
  4. Integral 90 Degree Long Sweep Elbow, FIG 1502

· Deenpu Fittings are available 2″, 3″ and 4″nominal pipe sizes.
· All Fittings are available for Standard and H2S service.
· Wide range of fittings from Elbows to Swages with integral 1502 union end
· Standard CWP 15,000psi/TP 22,500psi and H2S service CWP 10,000psi/TP 15,000psi

Category: Tag:

Description

Deenpu weco style adapters and integral forged fittings are ideal for handling fluids at cold working pressure up to 20000 psi. Block Tee, elbows, crosses, wyes, laterals can be combined to suit virtually any installation, also union crossover, pup joints, swivel joints, steel loop hose can be provided.

Integral Fitting Longsweep Elbow, Chiksan Longsweep Elblow, Integral unions, belong to the Integral Fittings family. Our union crosses are fully designed, produced, and tested according to API 6A and API 16C standards. These crosses are widely used in cementing, fracturing and testing lines, and other well service applications. Crosses for both standard service and sour service are available. Our Hammer Union Crosses are interchangeable with FMC Weco’s and other major brands.

Cold Working Pressure (psi) 6000~20000
Nominal Size (inch) 1 1/2″; 2″; 3″; 4″
End Connection Fig 602; Fig 1002; Fig 1502; Fig 2202 or Line Pipe Thread
Style 10, 20, 30, 40, 50, 60, 70, 80, 100
Type Long radius, short radius
Sour Gas Service is also available
