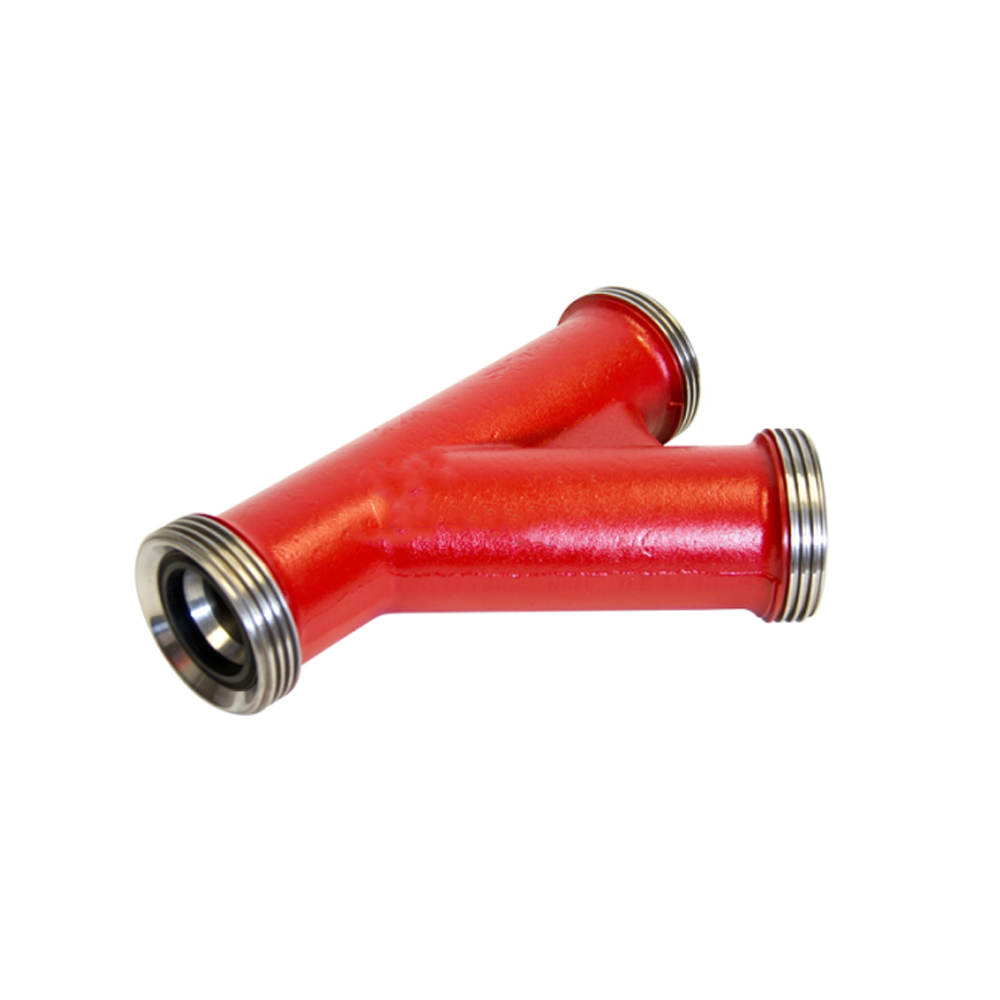

Integral Lateral 45 Degree FxFxF, FIG 1502

. Fittings are available 2″, 3″ and 4″nominal pipe sizes.
· All Fittings are available for Standard and H2S service.
· Wide range of fittings from Elbows to Swages with integral 1502 union end
· Standard CWP 15,000psi/TP 22,500psi and H2S service CWP 10,000psi/TP 15,000psi

Description

Product Name: Laterals, Integral Fittings, High Pressure Weco Hammer Union Laterals

Sizes: 1″, 2″, 3″, 4″

Cold Working Pressure (CWP): 6000 PSI (6K), 10000 PSI (10K), 15000 PSI (15K), 20000 PSI (20K), 42Mpa-140Mpa

Material: Integral Forged Alloy Steel or as per customers requirements

Configurations: Male x Female x Female (M x F x F), Male x Female x Male ( M x F x M), Female x Female x Female (F x F x F), Female x Male x Female ( F x M x F)

End Connections: Weco Wing Hammer Union Fig 602, Fig 1502, Fig 2002, Fig 1002 Integral Connection, Threaded

Angle Degree: 45° 60°

Temperature Range: -46°C~121°C/-20°F~250°F/-50°F~250°F

Temperature Level: K – U

Service: Standard, H2S Service, Sour Service

Standards: API 16C, API6A, and NACE MR0175
