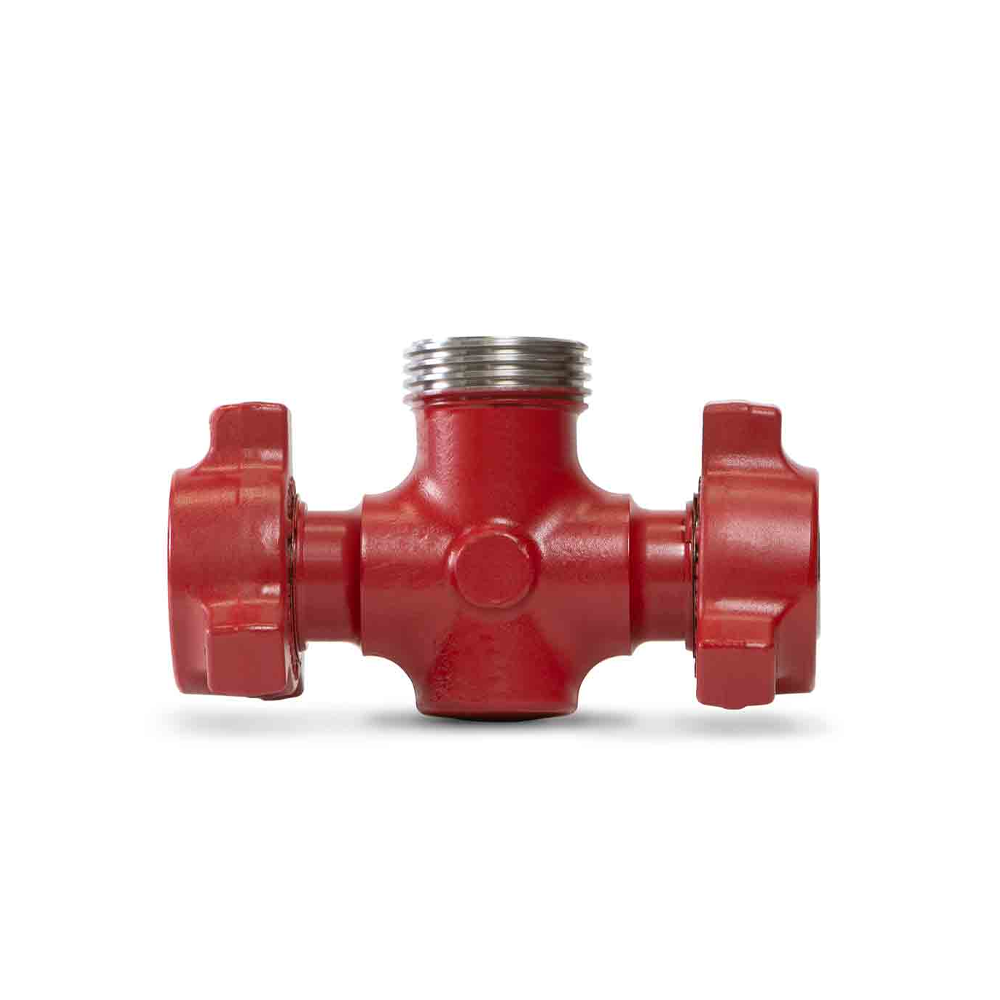

Integral Tee MxFxM, FIG 1502

Description

The Weco Union Tee is a kind of wellhead crossover conformed with API 6A specification. The wellhead tee is used for wellhead equipment connection as the high pressure wellhead integral fitting. The weco union tee is designed with weco wing uion end connection and widely used in manifolds, wellhead pipelines, well testing lines, high pressure well service lines and proudction pipelines.  The wellhead tee is made of alloy steel AISI 4130 for long service life.

Sizes: 1″, 2″, 3″, 4″
Working Pressure 6000 PSI , 10000 PSI , 15000 PSI , 20000 PSI
Material AISI 4130 Integral Forged Alloy Steel
Configuration Male x Male x Female, Male x Female x Fmale
Female x Male x Female,Female x Male x Male
Female x Female x Female
End Connections Hammer Union Fig 602, Fig 1502, Fig 2002, Fig 1002 Integral Connection
Working Temperature -46°C~121°C
Service H2S Service, Sour Service
Application: High-Pressure well service flowlines, Fracturing, Cementing, Acidizing and Testing Lines
