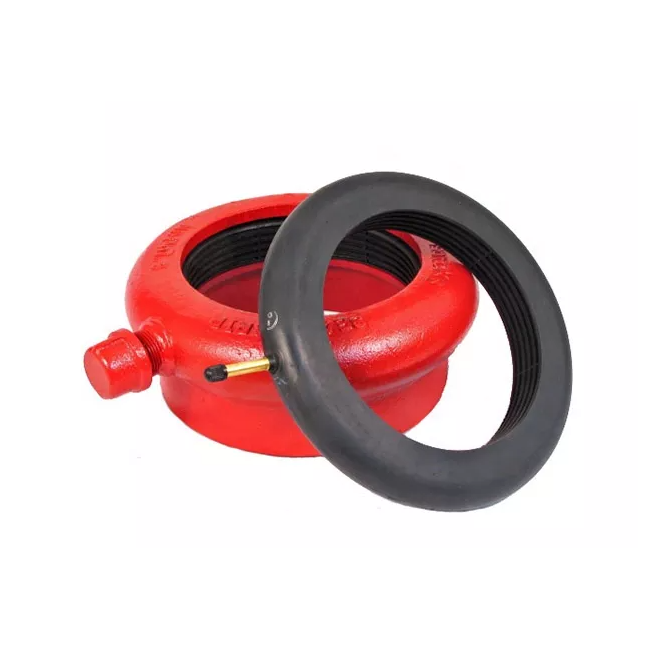

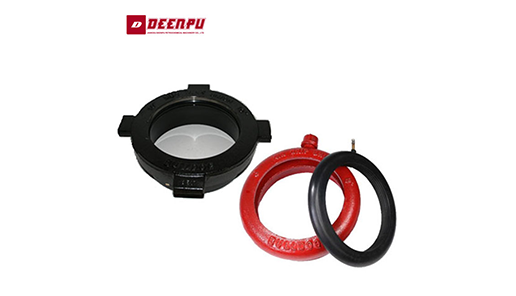

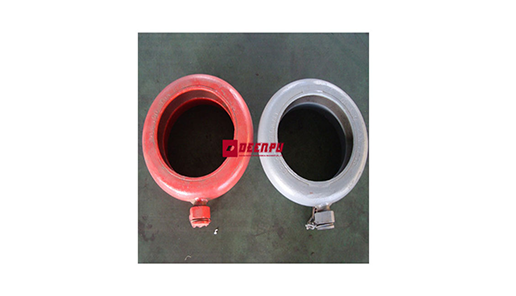

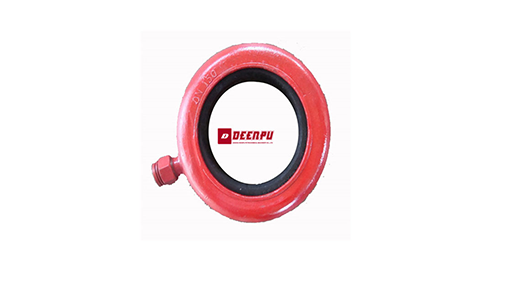

Kemper Valve Seal-O-Grip Air Grip Mud Tank Unions
Air Grip union is widely applied in drilling fluid pipelines, with features of low-pressure, large pipe size, big pipe
misalignment, frequent installation and uninstall. Especially, in connecting mud tanks, mud suction and return lines in solid
control system.
misalignment, frequent installation and uninstall. Especially, in connecting mud tanks, mud suction and return lines in solid
control system.
150 psi maximum line pressure, 4, 6, 8, 10, 12, 14and 16-inch sizes
Recommended service:
Mud suction and return lines and low-pressure fluid lines
Features:
1. Shot of rig air inflates tube to seal around pipe
2. Fast, easy make-up without close alignment
3.Allows pipe expansion or misalignment without breaking the seal
4. No nuts, bolts, or wrenches required
Product Paramenters
Normal Pipe
|
4″
|
6″
|
8″
|
10″
|
12″
|
14″
|
16″
|
Size(mm)
|
-100
|
-150
|
-200
|
-250
|
-300
|
-350
|
-400
|
Tube I.D.(mm)A
|
114
|
171
|
222
|
278
|
329
|
384
|
413
|
Body I.D.(mm)B
|
117
|
176
|
227
|
283
|
333
|
388
|
416
|
Butt-weld I.D.(mm)C
|
129
|
203
|
257
|
308
|
340
|
409
|
441
|
Butt-weld I.D.(mm)D
|
141
|
219
|
273
|
324
|
356
|
425
|
547
|
Body O.D.(mm)E
|
168
|
260
|
311
|
368
|
419
|
476
|
503
|
Height(mm)F
|
80
|
102
|
102
|
108
|
108
|
108
|
108
|
Wt.(kgs)-Air bag
|
0.3
|
0.65
|
0.8
|
1
|
1.2
|
1.5
|
1.7
|
Wt.(kgs)-Assembly
|
5.5
|
8.2
|
9.2
|
12
|
13.5
|
15
|
20
|
