Description
Mud Pump
Brands:EMSCO/GARDNER DENVER/NOV/OILWELL/TSC/BOMCO/RONGSHENG/HONGHUA etc
F series Mud Pump:F-350,F-500,F-800,F-1000,F-1300,F-1600,F-2200;
PZ series Mud Pump:PZ-7,PZ-8,PZ-9,PZ-10,PZ-11;
3NB series Mud Pump:3NB-350,3NB-500,3NB-600,3NB-800,3NB-1000,3NB-1300,3NB-1300C,3NB-1600,3NB-2200;
BW series Mud Pump:BW-100,BW-150,BW-250,BW-300 etc;
CWB Series Mud Pump:CWB-1000,CWB-1500,CWB-2000 etc;

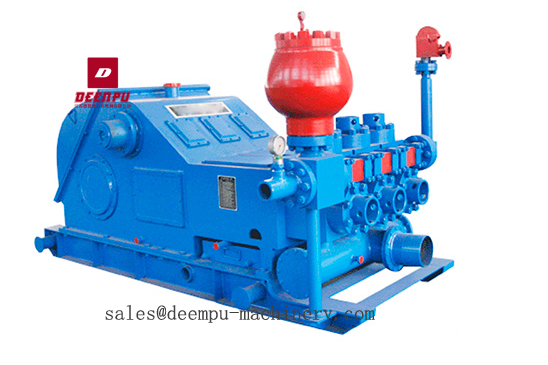

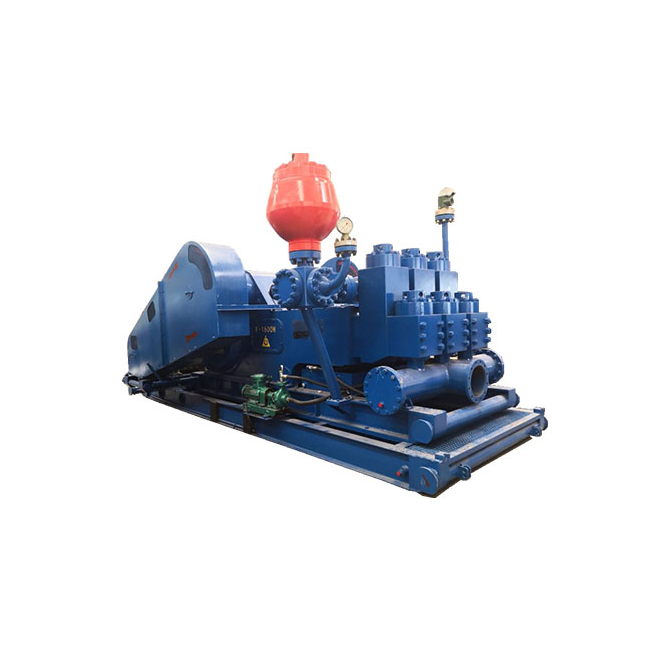

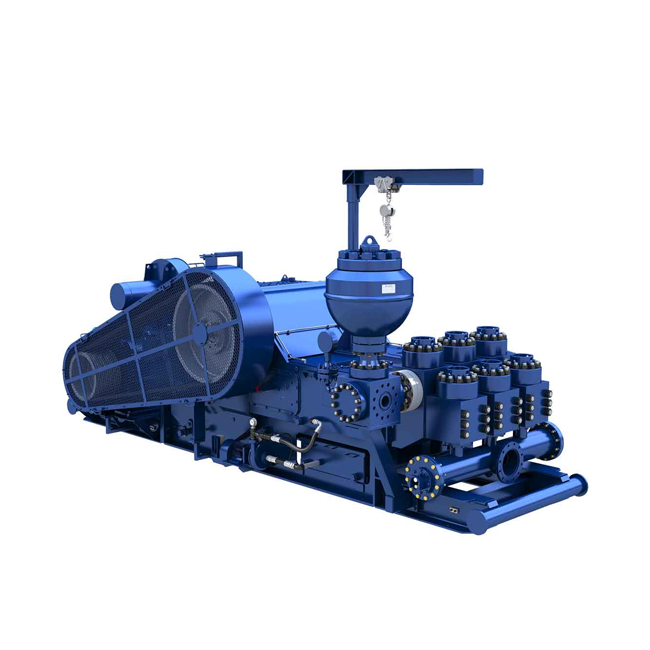

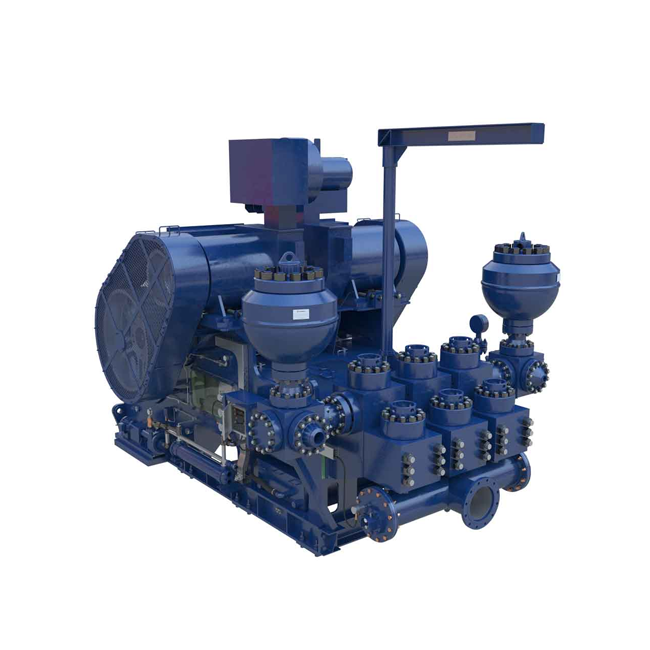

Features of Oil well Triplex Mud pump
1. The frame which adopts steel welding parts, has features of good rigidity, high strength and light weight
2. The intermediate tie rod is modeled and weaved with double sealing structure which has good sealing effect
3. Crosshead and crosshead guide is durable and have long service life
4. The cylinder is made of alloy steel forgings, and the three cylinders of each pump areinterchangeable
5. In order to enhance its corrosion resistance, the cylinder surface is processed by chemical nickel plating
6. The suction valve and discharge valve of F500,F800,F1000 are interchangeable
7. The power end adopts the combination of forced lubrication and splash lubrication which can achieve the goal of forced lubrication.
8. Each mud pump can match a infusion system to achieve the effect of energy saving
| Model | F-800 | F-1000 | F-1300 | F-1600/1600L | F-2200 |
| Max.Liner Size*Stroke | 170*229
(6-3/4*9) |
170*254
(6-3/4*10) |
180*305
(7*12) |
180*305
(7*12) |
230*356
(9*14) |
| Rating Strokes s/min | 150 | 140 | 120 | 120 | 105 |
| Rating Power kW | 597(800hp) | 746(1000hp) | 969(1300hp) | 1193(1600hp) | 1640(2000hp) |
| Gear Ratio | 4.185 :1 | 4.2074:1 | 4.206:1 | 4.206:1 | 3.512:1 |
| Suction Flange | 10 | 12 | 12 | ||
| Discharge Flange | 5 | 5 | 5 | ||
| Pinion Shaft Dia.mm | 177.8(7) | 196.9(7-3/4) | 215.9(8-1/2) | 215.9(8-1/2) | 254(10) |
| Key mm(in) | 44.5*44.5
(1-3/4*1-3/4) |
50.8*50.8
(2*2) |
50.8*50.8
(2*2) |
50.8*50.8
(2*2) |
63.5*44.45
(2-1/2*1-3/4) |
| Valve Pots | Valve-over-valve API#6 | Valve-over-valve API#6 | Valve-over-valve API#7 | Valve-over-valve API#7 | Valve-over-valve API#8 |
| Approx.Weight kg(Ib) | 14500(31970) | 18790(41420) | 24572(54170) | 24791(54660)
25900(57100) |
38460(84790) |
Our company has been in the oil & gas drilling equipment industry for over more years, We are here to serve all your drilling equipment needs.
