Description
oil drilling and gas hydraulic drill pipe /casing /tubing pipe/sucker rod power tong

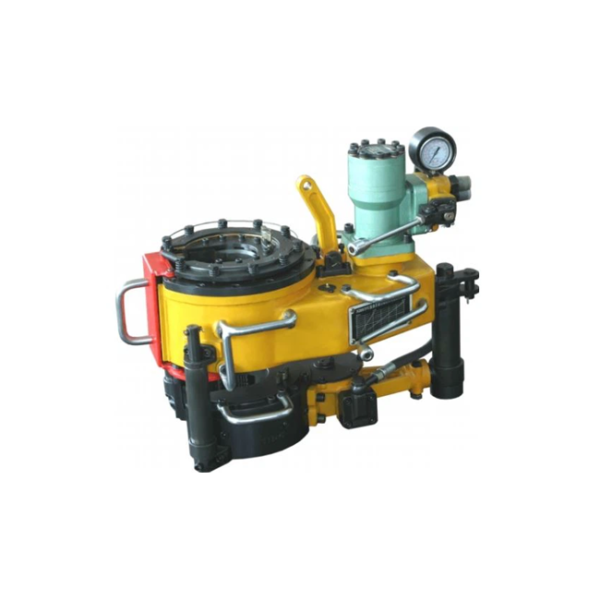

hydraulic power tong is an open type power tong which is used to lift and discharge oil pipe, casing pipe, drill pipe and similar screw thread pipe column in oil filed well service. This power tong features impact structure, convenient operation, reliable performance, good durability, wide applications and large output torque. With this product, the labour intensity of workers can be lowered, besides, the working efficiency and oil service quality can be increased.
Product Paramenters
Model
|
ZQ203-125I
|
ZQ203-100
|
ZQ203-100II
|
ZQ203-100III
|
ZQ162-50
|
ZQ127-25
|
|
Size range
|
mm
|
127-203
|
127-203
|
127-203
|
127-203
|
85-162
|
65-127
|
in
|
31/2coupling-8body
|
31/2coupling-8body
|
31/2coupling-8body
|
31/2coupling-8body
|
23/8coupling-5body
|
23/8coupling-31/2body
|
|
Max. torque
|
kN.m
|
125
|
100
|
100
|
100
|
50
|
25
|
ft.lbf
|
92200
|
73750
|
73750
|
73750
|
36880
|
18440
|
|
The speed of tong head Hi.
|
rpm
|
40
|
40
|
40
|
40
|
60
|
65
|
The speed of tong head Lo.
|
rpm
|
2.7
|
2.7
|
2.7
|
2.7
|
4.1
|
10.5
|
Hydraulic system pressure rating
|
MPa
|
20
|
16.6
|
16.6
|
16.6
|
16
|
12
|
psi
|
2900
|
2400
|
2400
|
2400
|
2320
|
1740
|
|
Hydraulic system flow rating
|
L/min
|
114
|
114
|
114
|
114
|
120
|
180
|
gpm
|
30
|
30
|
30
|
30
|
32
|
48
|
|
Stroke of shifting sylinder
|
mm
|
1500
|
1500
|
1500
|
1000
|
1000
|
|
in
|
59
|
59
|
59
|
39.4
|
39.4
|
||
Moving distance of tong
|
mm
|
0-1500
|
|||||
in
|
0-59
|
||||||
Lifting distance of tong
|
m
|
0-485
|
0-800
|
||||
in
|
0-19
|
0-31.5
|
|||||
Overall dimensions
|
mm
|
1720*1050*1750
|
1700*1000*1400
|
1700*1000*1400
|
1750*1650*2050
|
1570*800*1190
|
1110*790*820
|
in
|
68*41*69
|
67*39*55
|
67*39*55
|
69*65*81
|
62*31*47
|
44*31*32
|
|
Weight
|
kg
|
2600
|
2400
|
2500
|
3250
|
1500
|
620
|
lb
|
5730
|
5290
|
5510
|
7165
|
3310
|
1360
|
