Wireline BOP

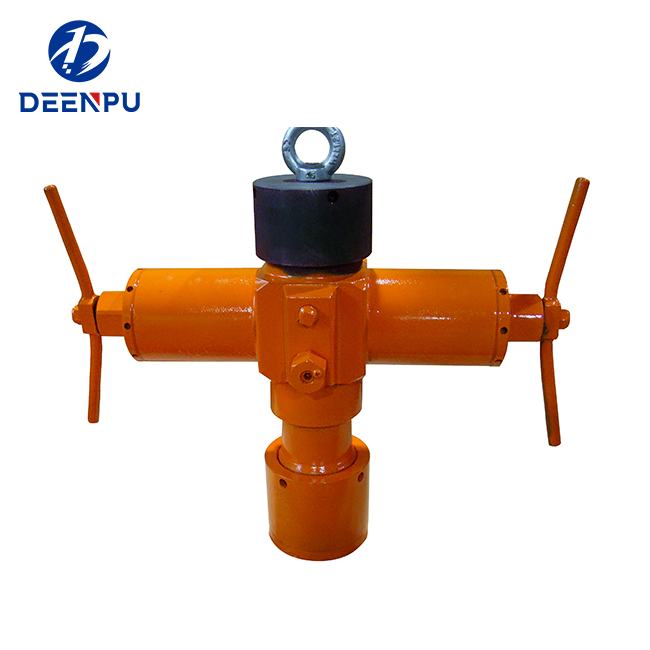

Single Manual BOP Wireline Pressure Control
Single Manual BOP Wireline Pressure Control ,also known as Blow Out Preventer (BOP), is commonly found located between Lubricator and Wellhead.The design allows pressure to be contained within the well once the bodies are closed.
It allows the equalisation of lubricator and well pressure when the operation is to be resumed.Single manual operated Wireline Valve features a pair of Ram assemblies and stem connected handle that can be manipulated by manually rotating the handles to open or close the rams. This tool is designed only suitable for slickline operation.
Single Manual BOP , also known as Blow Out Preventer (BOP), is used as a safet quipment commonly fund located between Lubricator and Wellhead/Christmas Tree.
OTIS Quick Union
Bore | Work Pressure | Service | Connection | Seal Dia. |
2.5" | 5K 10K | Std H2S | 5"-4ACME | 3.5" |
3" | 5K | H2S | 5"-4ACME | 3.5" |
3" | 10K | Std | 5"-4ACME | 3.5" |
3" | 10K | Std H2S | 5-3/4"-4ACME | 4" |
2.5" | 15K | H2S | 5-3/4"-4ACME | 4" |
4" | 5K 10K | Std | 6-1/2"-4ACME | 4.75" |
3" | 15K | Std H2S | 7-1/2"-4ACME | 5.5" |
5" | 5K | Std H2S | 8-1/4"-4ACME | 6.188" |
4" | 10K | Std H2S | 8-3/8"-4ACME | 5.25" |
5" | 5K 10K | Std H2S | 9"-4ACME | 6.75" |
4" | 15K | Std H2S | 9-1/2"-4ACME | 6.25" |
6.38" | 10K | Std H2S | 11-1/2"-4ACME | 8.25" |
BOWEN Quick Union
Bore | Work Pressure | Service | Connection | Seal Dia. |
2.5" | 5K 10K | Std H2S | 4-3/4"-4ACME | 3.75" |
3" | 5K 10K | Std | 4-3/4"-4ACME | 3.75" |
3" | 5K | H2S | 4-3/4"-4ACME | 3.75" |
3" | 5K | Std H2S | 5-1/2"-4ACME×2 | 4.375" |
3" | 10K | Std | 5-1/2"-4ACME×2 | 4.375" |
2.5" | 15K | Std H2S | 6-5/16"-4ACME | 4.375" |
3" | 10K | Std H2S | 6-5/16"-4ACME | 4.375" |
3" | 15K | Std H2S | 7"-5STUB ACME | 4.375" |
4" | 5K | H2S | 7"-5STUB ACME | 4.375" |
4" | 10K | H2S | 8-1/4"-4ACME×2 | 6.0" |
